PLC 2x4 Splitter LGX Cassette LC/APC Single Mode
Part Number: FLPLC-2004-LGX-LC-APC-SM
Category: Fiber Optic Splitter
✔ ISO Certified
✔ High Quality
✔ Fast Delivery
Payment Methods:
Pick up from Our Store
Today from 9 am to 6 pm
Indrive, UBER, DiDi delivery
Delivered to specified address
Overview
Features
Key Benefits
Applications
Technical Specs
More Info

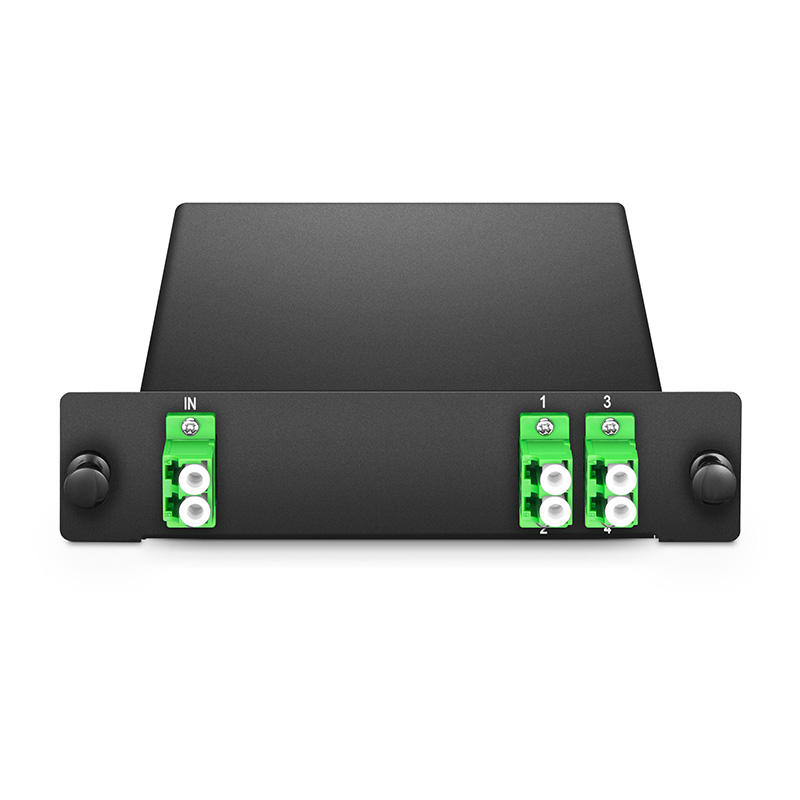

The PLC 2 x 4 Splitter Standard LGX Cassette is a passive optical device designed to distribute optical signals from two input ports into four output channels with high uniformity and low insertion loss. It is widely used in FTTH, FTTx, telecom, and optical distribution systems, ensuring stable and efficient performance in a standardized LGX cassette format.
- 2 x 4 optical splitting configuration.
- Standard LGX cassette design for rack mounting.
- LC/APC connectors for low reflection performance.
- Single mode fiber compatibility.
- Low insertion loss and high uniformity.
- Stable performance across wide wavelength range.
- Easy plug-and-play installation.
- Compatible with ODF and fiber distribution frames.
- Efficient dual-input optical distribution.
- Supports scalable FTTH/FTTx network design.
- Reduces network complexity and cabling effort.
- Compact LGX format saves rack space.
- High reliability for long-term deployments.
- Easy integration into existing fiber systems.
- FTTH (Fiber to the Home) networks.
- FTTx access and distribution systems.
- Telecommunication backbone networks.
- Optical Distribution Frames (ODF).
- Data center fiber infrastructure.
- CATV optical systems.
| Specification | Details |
|---|---|
| Brand | Fiber Light |
| Splitter Type | PLC Splitter |
| Configuration | 2 x 4 |
| Module Type | LGX Cassette |
| Fiber Type | Single Mode |
| Connector Type | LC/APC |
| Insertion Loss | ≤ 7.5 dB |
| Return Loss | ≥ 55 dB |
| Directivity | ≥ 55 dB |
| Operating Wavelength | 1260 ~ 1650 nm |
| Operating Temperature | -40°C to +85°C |
| Storage Temperature | -40°C to +85°C |
FAQ
What is a 2 x 4 PLC splitter used for?
It distributes optical signals from two inputs into four output channels for fiber network applications.
Is it suitable for FTTH networks?
Yes, it is widely used in FTTH, FTTx, and telecom fiber distribution systems.
What connector type is used?
It uses LC/APC connectors to ensure low reflection and stable optical performance.
Can it be installed in ODF racks?
Yes, the LGX cassette format is fully compatible with ODF racks and fiber distribution frames.
