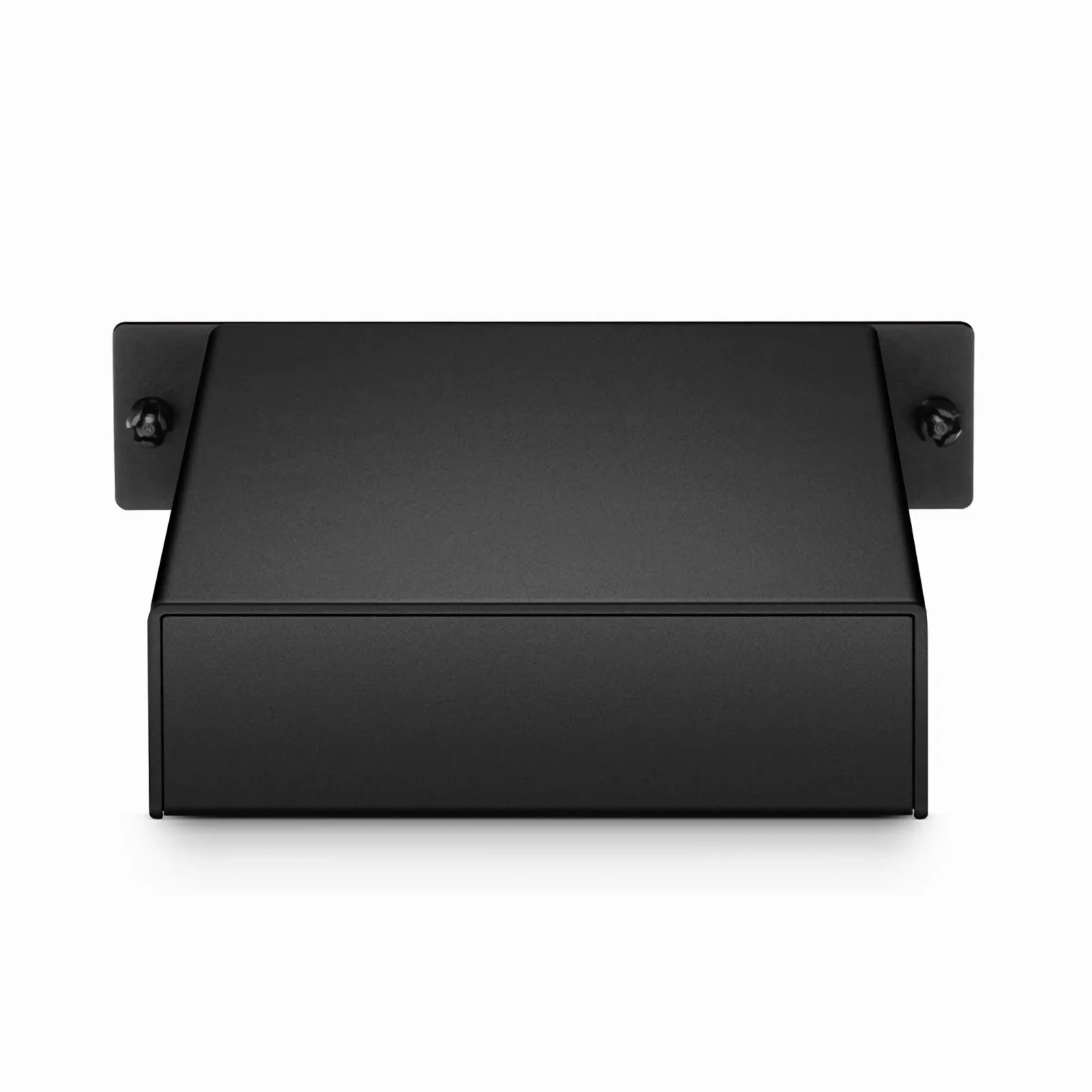

PLC 1 x 2 Splitter, Standard LGX Cassette, LC/APC, Single Mode
Part Number: FLPLC-1002-LGX-LC-APC-SM
Category: Fiber Optic Splitter
✔ ISO Certified
✔ High Quality
✔ Fast Delivery
Payment Methods:
Pick up from Our Store
Today from 9 am to 6 pm
Indrive, UBER, DiDi delivery
Delivered to specified address
Overview
Features
Key Benefits
Applications
Technical Specs
More Info
The PLC 1 x 2 Splitter Standard LGX Cassette is a compact passive optical device designed to split a single optical input into two outputs with stable performance and low insertion loss. It is widely used in FTTH, FTTx, and fiber optic distribution systems, offering reliable signal performance in a plug-in LGX cassette format.
- 1 x 2 optical splitting ratio.
- Standard LGX cassette design.
- LC/APC connectors for low back reflection.
- Single mode fiber compatibility.
- Low insertion loss performance.
- High return loss and stability.
- Plug-and-play installation.
- Durable and rack-mount compatible design.
- Easy integration into fiber distribution frames.
- Stable signal distribution with minimal loss.
- Reduces installation time in telecom networks.
- Supports scalable FTTH and FTTx deployment.
- Reliable long-term optical performance.
- Space-efficient LGX cassette format.
- FTTH (Fiber to the Home) networks.
- FTTx optical distribution systems.
- Telecommunication backbone networks.
- Data center fiber management.
- ODF (Optical Distribution Frames).
- CATV optical systems.
| Specification | Details |
|---|---|
| Brand | Fiber Light |
| Splitter Type | PLC Splitter |
| Configuration | 1 x 2 |
| Module Type | LGX Cassette |
| Fiber Type | Single Mode |
| Connector Type | LC/APC |
| Insertion Loss | ≤ 3.8 dB |
| Return Loss | ≥ 55 dB |
| Operating Wavelength | 1260 ~ 1650 nm |
| Operating Temperature | -40°C to +85°C |
| Storage Temperature | -40°C to +85°C |
FAQ
What does a 1 x 2 splitter do?
It splits one optical input signal into two output channels equally.
Where is LGX cassette used?
It is used in fiber distribution frames and ODF racks for organized fiber management.
Is it suitable for FTTH?
Yes, it is widely used in FTTH and FTTx networks.
What connector type is included?
It uses LC/APC connectors for low reflection and stable optical performance.
