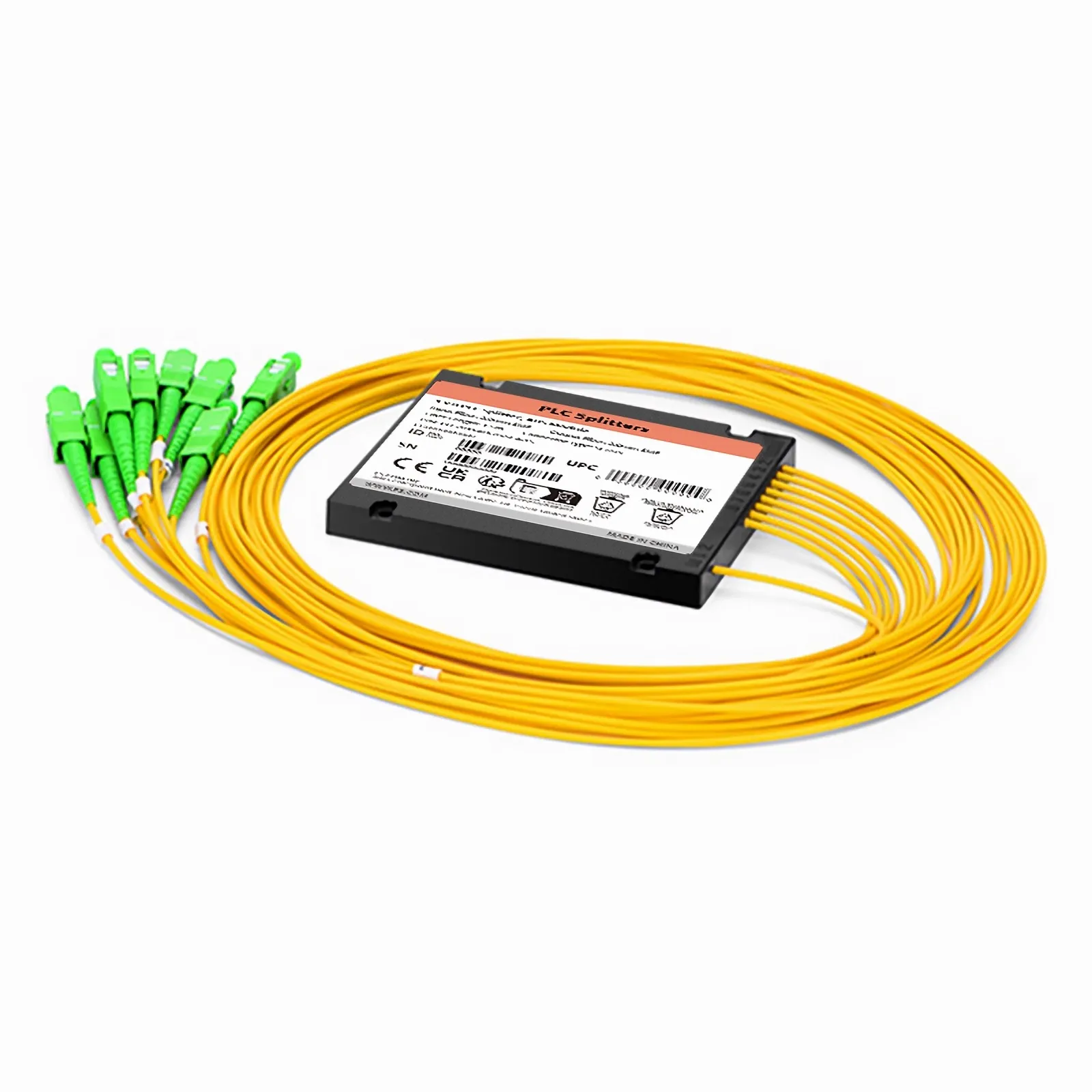

1 x 8 PLC Fiber Splitter, Splice/Pigtailed ABS Module, 2.0mm, SC/APC, Singlemode
Part Number: FLPLC-108-ST-250-SM-APC
Category: Fiber Optic Splitter
✔ ISO Certified
✔ High Quality
✔ Fast Delivery
Payment Methods:
Pick up from Our Store
Today from 9 am to 6 pm
Indrive, UBER, DiDi delivery
Delivered to specified address
Overview
Features
Key Benefits
Applications
Technical Specs
More Info
1 x 8 PLC Fiber Splitter, Splice/Pigtailed ABS Module, 2.0mm, SC/APC, Singlemode Overview
The 1×8 PLC Fiber Splitter ABS Module is a passive optical component designed to split one input signal into eight outputs with uniform optical power distribution. Built using PLC (Planar Lightwave Circuit) technology, it delivers stable performance and low insertion loss for FTTH and passive optical network (PON) applications. The splice/pigtailed ABS module structure with 2.0mm single-mode fibers and SC/APC connectors ensures reliable installation and reduced back reflection in high-speed fiber systems.
1 x 8 PLC Fiber Splitter, Splice/Pigtailed ABS Module, 2.0mm, SC/APC, Singlemode Applications
- FTTH and FTTx deployments
- GPON / EPON passive optical networks
- Optical Distribution Frames (ODF)
- Telecommunication access networks
- CATV fiber optic systems
- Fiber distribution cabinets and closures
1 x 8 PLC Fiber Splitter, Splice/Pigtailed ABS Module, 2.0mm, SC/APC, Singlemode Features
- PLC technology for precise and uniform optical splitting
- 1×8 split configuration
- Durable ABS protective module
- SC/APC connectors minimize back reflection
- 2.0mm pigtailed fiber design
- Compact and easy installation
- Stable performance and long service life
1 x 8 PLC Fiber Splitter, Splice/Pigtailed ABS Module, 2.0mm, SC/APC, Singlemode Specifications
| Specification | Details |
|---|---|
| Part Number | FLPLC-108-ST-250-SM-APC |
| Split Ratio | 1×8 |
| Technology | PLC (Planar Lightwave Circuit) |
| Fiber Type | Single Mode (9/125 µm) |
| Connector Type | SC/APC |
| Fiber Cable Diameter | 2.0mm |
| Module Type | ABS Splice/Pigtailed Module |
| Typical Insertion Loss | ≤ 10.5 dB |
| Return Loss | ≥ 55–60 dB |
| Uniformity | ≤ 1.5 dB |
| Operating Temperature | -40°C to +85°C |
| Compliance | IEC 61753, IEC 61300, RoHS |
1 x 8 PLC Fiber Splitter, Splice/Pigtailed ABS Module, 2.0mm, SC/APC, Singlemode Benefits
- Balanced optical signal distribution
- Low insertion loss improves network efficiency
- High reliability for long-term deployments
- Compact design for fiber distribution boxes and closures
- Cost-effective FTTH optical distribution solution
1 x 8 PLC Fiber Splitter, Splice/Pigtailed ABS Module, 2.0mm, SC/APC, SinglemodeFAQs
What is a PLC fiber splitter?
A PLC splitter is a passive optical device that divides one optical signal into multiple outputs with uniform signal distribution.
What is an ABS module splitter?
An ABS module splitter is enclosed in a protective plastic housing that improves durability and simplifies installation.
Where is a 1×8 PLC splitter used?
It is commonly used in FTTH, GPON, telecom access networks, and optical distribution systems.
