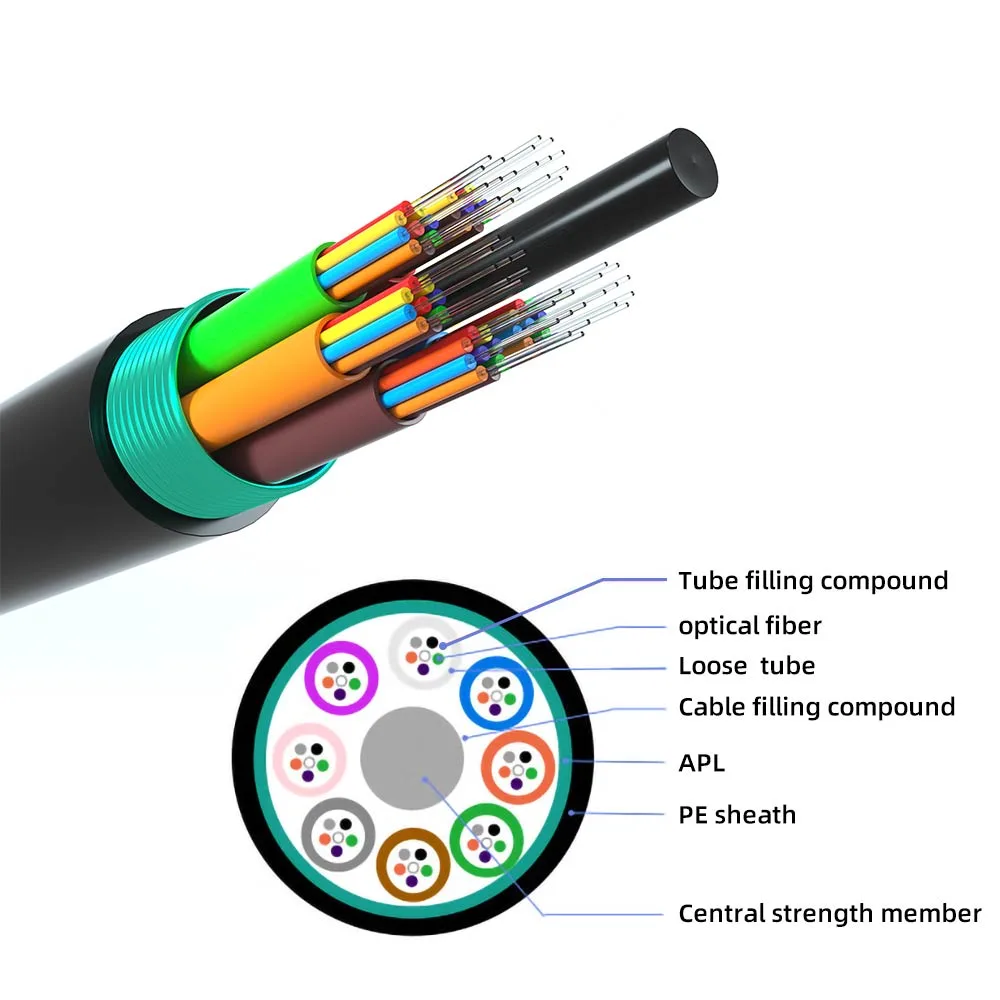

Fiber Optic Outdoor Cable – 48 Core Multimode OM4 – Steel Wire & Steel Tape Armored – HDPE
Part Number: FLFOCODD204OM48LGSWASTAHD
Category: Outdoor Cable
Payment Methods:
Pick up from Our Store
Today from 9 am to 6 pm
Indrive, UBER, DiDi delivery
Delivered to specified address
Overview
The 48 Core Multimode OM4 Armored Outdoor Fiber Optic Cable is designed for high-bandwidth and reliable optical transmission in demanding outdoor network environments. It contains forty-eight OM4 multimode optical fibers with a nominal 50/125 μm fiber size, providing reliable connectivity for high-speed data communication and network backbone applications.
The cable features steel wire and steel tape armor to provide enhanced mechanical protection against crushing, impact, external mechanical damage, and rodent activity. The HDPE outer sheath provides durable protection against moisture, abrasion, UV exposure, and other environmental stresses.
This cable is suitable for enterprise networks, campus networks, data communication systems, data center interconnections, access and distribution networks, industrial networks, building-to-building connections, and other outdoor multimode fiber applications requiring high bandwidth and reliable optical performance.
Features
- 48-core multimode optical fiber construction.
- OM4 high-bandwidth multimode fiber.
- 50/125 μm graded-index multimode optical fiber.
- Steel wire armor for enhanced mechanical protection.
- Steel tape armor for additional mechanical and rodent protection.
- HDPE outer sheath suitable for outdoor environments.
- Good resistance to crushing and external mechanical forces.
- Enhanced protection against mechanical damage during installation.
- Good resistance to moisture, abrasion, UV exposure, and environmental stresses.
- High-bandwidth multimode optical transmission.
- Suitable for demanding outdoor network environments.
- Suitable for duct and direct burial installations.
- Robust construction for reliable long-term outdoor deployment.
- Suitable for high-density fiber network applications.
Applications
- Outdoor Multimode Fiber Optic Networks.
- High-Speed Enterprise Networks.
- Campus Backbone Networks.
- Data Communication Networks.
- Data Center Interconnection.
- Access and Distribution Networks.
- Building-to-Building Fiber Connections.
- Industrial Communication Networks.
- Infrastructure and Utility Networks.
- Telecommunication Network Infrastructure.
- High-Bandwidth Multimode Fiber Links.
- High-Density Fiber Distribution Systems.
- Outdoor Duct Installations.
- Direct Burial Applications.
Specifications
| Specification | Details |
|---|---|
| Product Type | Armored Outdoor Multimode Fiber Optic Cable |
| Fiber Count | 48 Fibers |
| Fiber Type | Multimode |
| Fiber Grade | OM4 |
| Fiber Size | 50/125 μm |
| Armor | Steel Wire & Steel Tape |
| Outer Sheath | HDPE |
| Installation | Outdoor, Duct & Direct Burial |
| Operating Temperature | -40°C to +70°C |
| Application | High-Bandwidth Outdoor Multimode Fiber Networks |
| Fiber Standard | OM4 Multimode Fiber |
