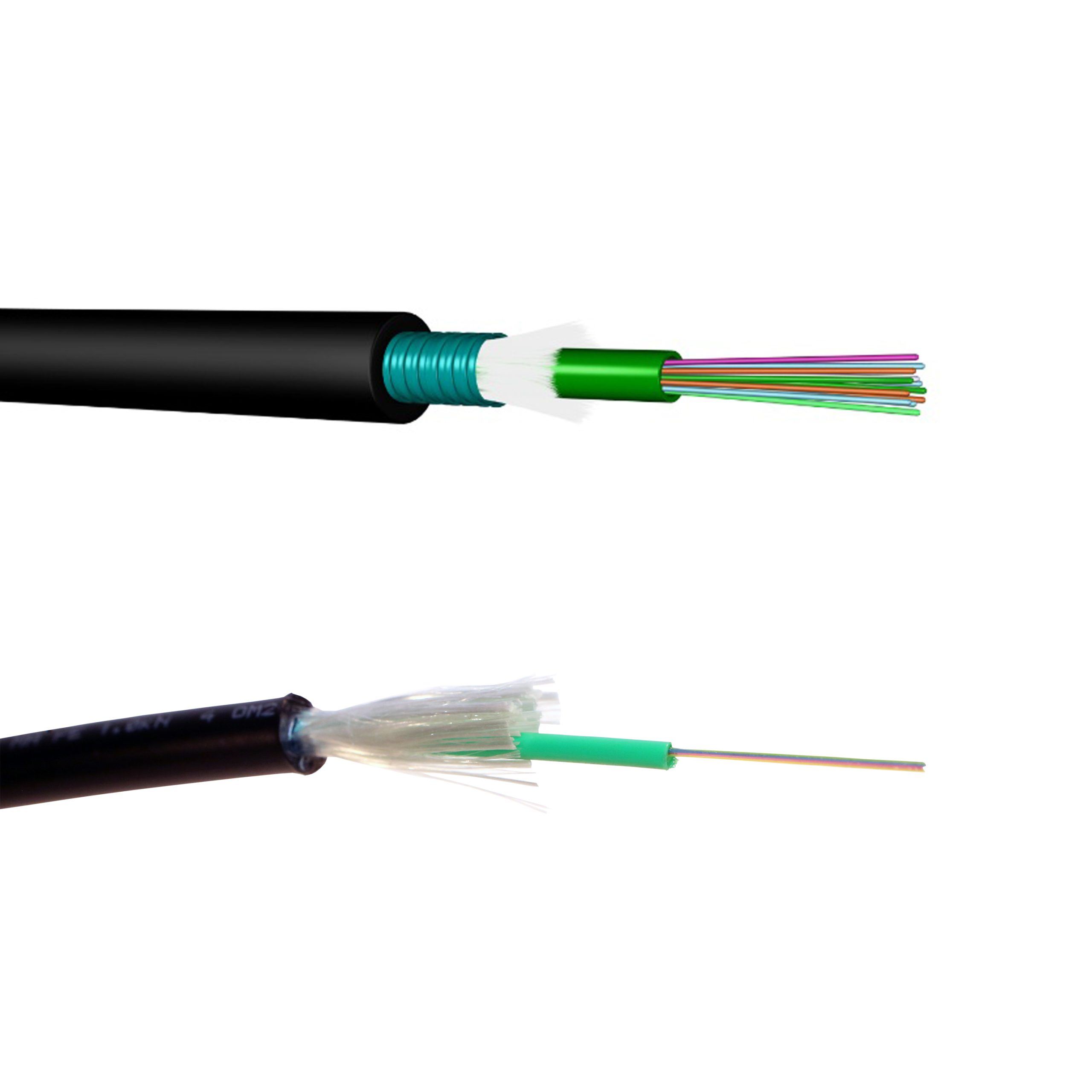

Fiber Optic Outdoor Cable – 4 Core Multimode OM4 – Central Tube – Steel Wire & Steel Tape Armored – HDPE
Part Number: FLFOCODD204OM4CTSWASTAHD
Category: Outdoor Cable
Payment Methods:
Pick up from Our Store
Today from 9 am to 6 pm
Indrive, UBER, DiDi delivery
Delivered to specified address
Overview
The 4 Core Multimode OM4 Armored Outdoor Fiber Optic Cable is designed for high-bandwidth and reliable optical transmission in demanding outdoor environments. It contains four OM4 multimode optical fibers with a 50/125 μm fiber size and features a central tube construction that provides effective protection for the optical fibers.
The cable incorporates steel wire and steel tape armor to provide enhanced mechanical protection against crushing, impact, external mechanical damage, and rodent activity. The HDPE outer sheath provides durable protection against moisture, abrasion, UV exposure, and other environmental stresses.
This cable is suitable for high-speed enterprise networks, campus networks, data communication systems, data center connections, access and distribution networks, and other outdoor multimode fiber applications requiring high-bandwidth optical connectivity.
Features
- 4-core multimode optical fiber construction.
- OM4 high-bandwidth multimode fiber.
- 50/125 μm graded-index multimode optical fiber.
- Central tube cable construction.
- Steel wire armor for enhanced mechanical protection.
- Steel tape armor for additional mechanical and rodent protection.
- HDPE outer sheath suitable for outdoor environments.
- Good resistance to crushing and external mechanical forces.
- Enhanced protection against mechanical damage during installation.
- Good resistance to moisture, abrasion, and environmental stresses.
- High-bandwidth multimode optical transmission.
- Suitable for demanding outdoor network environments.
- Suitable for duct and direct burial installations.
- Robust construction for reliable long-term outdoor deployment.
Applications
- Outdoor Multimode Fiber Optic Networks.
- High-Speed Enterprise Networks.
- Campus Backbone Networks.
- Data Communication Networks.
- Data Center Interconnection.
- Access and Distribution Networks.
- Building-to-Building Fiber Connections.
- Industrial Communication Networks.
- Infrastructure and Utility Networks.
- Telecommunication Network Infrastructure.
- High-Bandwidth Multimode Fiber Links.
- Outdoor Duct Installations.
- Direct Burial Applications.
Specifications
| Specification | Details |
|---|---|
| Product Type | Armored Outdoor Multimode Fiber Optic Cable |
| Fiber Count | 4 Fibers |
| Fiber Type | Multimode |
| Fiber Grade | OM4 |
| Fiber Size | 50/125 μm |
| Cable Construction | Central Tube |
| Armor | Steel Wire & Steel Tape |
| Outer Sheath | HDPE |
| Installation | Outdoor, Duct & Direct Burial |
| Operating Temperature | -40°C to +70°C |
| Application | High-Bandwidth Outdoor Multimode Fiber Networks |
| Fiber Standard | OM4 Multimode Fiber |
