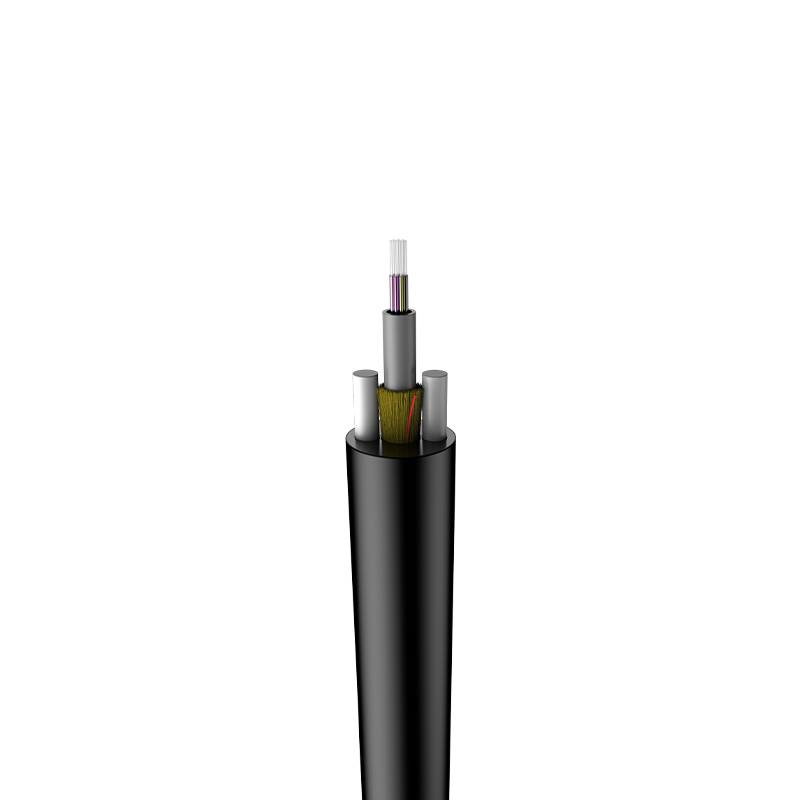

Miniature ADSS Drop Cable Overview
The Miniature ADSS Drop Cable – Double Sheath is a compact, self-supporting aerial fiber optic cable designed for access network drop connections. Its double sheath construction ensures enhanced mechanical protection and environmental resistance for outdoor FTTH/FTTX deployments.
Featuring single-mode fibers compliant with ITU-T G.652.D, the cable guarantees low attenuation, high reliability, and stable optical performance for last-mile fiber connections.
Miniature ADSS Drop Cable Features
- Compact and lightweight design for aerial drop deployment
- Double UV-resistant jackets for enhanced protection
- Self-supporting all-dielectric construction – no messenger wire required
- Layer-twisted loose tube construction protects fibers from stress
- Single-mode G.652.D fibers ensure low-loss, reliable optical performance
- Suitable for medium-span aerial drop applications
- Safe installation near power lines due to non-metallic design
Miniature ADSS Drop Cable Benefits
- Reliable last-mile FTTH/FTTX connections
- Durable in harsh outdoor conditions with double sheath protection
- Reduces installation complexity and sag in aerial drops
- Maintains stable optical performance for access network deployments
- Compact design allows installation in tight routes and short spans
Miniature ADSS Drop Cable Applications
- FTTH/FTTX last-mile aerial drop networks
- Residential and commercial access networks
- Medium-span aerial drop connections
- Outdoor aerial installation near power lines
Miniature ADSS Drop Cable Specifications
| Specification | Details |
|---|---|
| Product Name | Miniature ADSS Drop Cable – Double Sheath |
| Part Number | FLOFADSSMDS |
| Fiber Type | Single Mode 9/125 μm (ITU-T G.652.D) |
| Cable Type | All-Dielectric Self-Supporting (ADSS) |
| Outer Jacket | Double UV-resistant PE jackets |
| Construction | Layer-Twisted Loose Tube |
| Span Length | Short to medium aerial drop |
| Installation Method | Aerial, pole-to-pole drop cable |
| Operating Temperature | -40°C to +70°C |
| Attenuation @ 1310 nm | ≤ 0.35 dB/km |
| Attenuation @ 1550 nm | ≤ 0.22 dB/km |
| Minimum Bending Radius | Static: 10× cable diameter, Dynamic: 20× cable diameter |
| Standards Compliance | ITU-T G.652.D, IEC 60794 |
Miniature ADSS Drop Cable FAQs
What is a Miniature ADSS Drop Cable?
A compact, self-supporting all-dielectric aerial fiber cable with double jackets for FTTH/FTTX last-mile deployments.
Can it be installed near power lines?
Yes, the non-metallic design allows safe installation near high-voltage lines.
What fiber standard is used?
Single-mode fibers compliant with ITU-T G.652.D.
Is it weather-resistant?
Yes, the double UV-resistant jackets provide protection against sunlight, moisture, and mechanical stress.
