Fiber Optic Splice Closure 36 Core J09-9401
Part Number: FL-J09-9401
Category: Fiber Optic Horizontal Closure
✔ ISO Certified
✔ High Quality
✔ Fast Delivery
Payment Methods:
Pick up from Our Store
Today from 9 am to 6 pm
Indrive, UBER, DiDi delivery
Delivered to specified address
Overview
Features
Key Benefits
Applications
Technical Specs
More Info

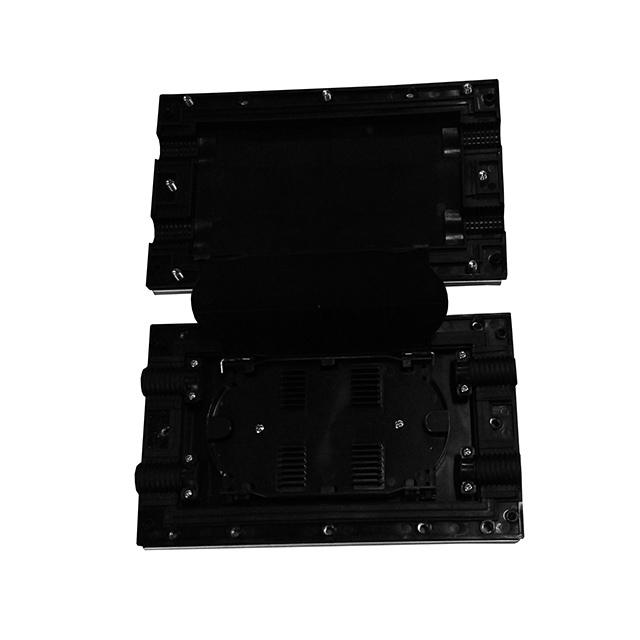

The Fiber Optic Splice Closure J09-9401 is a compact horizontal inline closure designed to protect and organize up to 36 fiber optic splices in outdoor environments. Featuring an IP68-rated mechanical sealing system and a durable PP+GF housing, it provides reliable protection against moisture, dust, and mechanical impact. The closure is ideal for FTTH, FTTx, telecommunications, and outdoor fiber optic distribution networks.
- Supports up to 36 fiber optic splices.
- Compact horizontal inline design.
- IP68 waterproof and dustproof protection.
- Rotating mechanical sealing system.
- One uncut cable port and two branch cable ports.
- Supports cable diameters from Ø10 to Ø17.5 mm.
- Three splice trays with 12 fibers per tray.
- High-strength PP + Glass Fiber (PP+GF) housing.
- Easy installation and future maintenance.
- Suitable for single-mode and multimode fiber cables.
- Provides reliable protection for fiber optic splices.
- Maintains excellent sealing performance in harsh environments.
- Supports uncut cable installation for faster deployment.
- Reduces maintenance time with a reusable mechanical seal.
- Compact design saves installation space.
- Ideal for outdoor telecom and FTTH networks.
- FTTH Networks.
- FTTx Deployments.
- Telecommunication Networks.
- Optical Distribution Networks (ODN).
- Wall Mount Installations.
- Pole Mount Installations.
- Underground Duct Systems.
- Direct Burial Applications.
| Specification | Details |
|---|---|
| Model | J09-9401 |
| Product Type | Fiber Optic Splice Closure |
| Closure Style | Horizontal / Inline |
| Maximum Fiber Capacity | 36 Fibers |
| Splice Tray Capacity | 12 Fibers per Tray |
| Number of Trays | 3 |
| Cable Ports | 1 Uncut Port + 2 Branch Ports |
| Supported Cable Diameter | Ø10–Ø17.5 mm |
| Dimensions | 295 × 220 × 90 mm |
| Weight | 1.8–2.0 kg |
| Housing Material | PP + Glass Fiber (PP+GF) |
| Protection Rating | IP68 |
| Sealing Method | Rotating Mechanical Seal |
| Installation | Wall, Pole, Duct & Direct Burial |
FAQ
What is the maximum fiber capacity of the J09-9401?
The J09-9401 supports up to 36 fiber optic splices using three splice trays with a capacity of 12 fibers per tray.
What cable ports are available?
The closure includes one uncut cable port and two branch cable ports, supporting cable diameters from Ø10 mm to Ø17.5 mm.
Is the J09-9401 suitable for outdoor use?
Yes. It features an IP68-rated mechanical sealing system and a durable PP+GF housing designed for harsh outdoor environments.
Where can the J09-9401 be installed?
The closure is suitable for wall mounting, pole mounting, underground ducts, and direct burial fiber optic installations.
