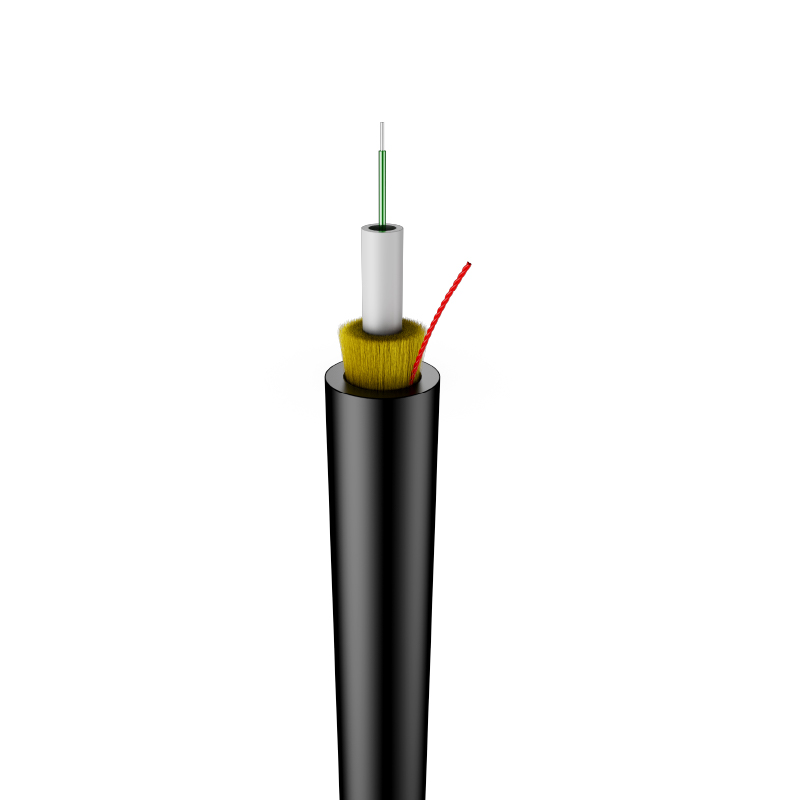

Double Sheath Access Network 1 Core Drop Fiber Optical Cable for Vertical Cabling
Category: Fiber Optic Cables
Payment Methods:
Pick up from Our Store
Today from 9 am to 6 pm
Indrive, UBER, DiDi delivery
Delivered to specified address
Overview
Features
Applications
Specifications
FAQs
Overview
Double sheath 1 core drop fiber optic cable is designed for FTTH access networks, especially vertical cabling inside buildings and high-rise structures.
It provides enhanced mechanical protection with dual jacket construction, making it suitable for indoor-outdoor transitions and vertical riser installations.
Features
- Double sheath (dual jacket) protection
- 1-core single-mode fiber (G.657A1/A2)
- High tensile strength for vertical cabling
- Bend-insensitive fiber design
- LSZH/PE jacket options
- Moisture and abrasion resistant
- Easy FTTH installation
Applications
- Vertical cabling in high-rise buildings
- FTTH access network drop installations
- Indoor-outdoor transition points
- Riser shaft fiber routing
- Subscriber last-mile connections
Technical Specifications
| Parameter | Details |
|---|---|
| Fiber Count | 1 Core |
| Fiber Type | G.657A1 / G.657A2 Single Mode |

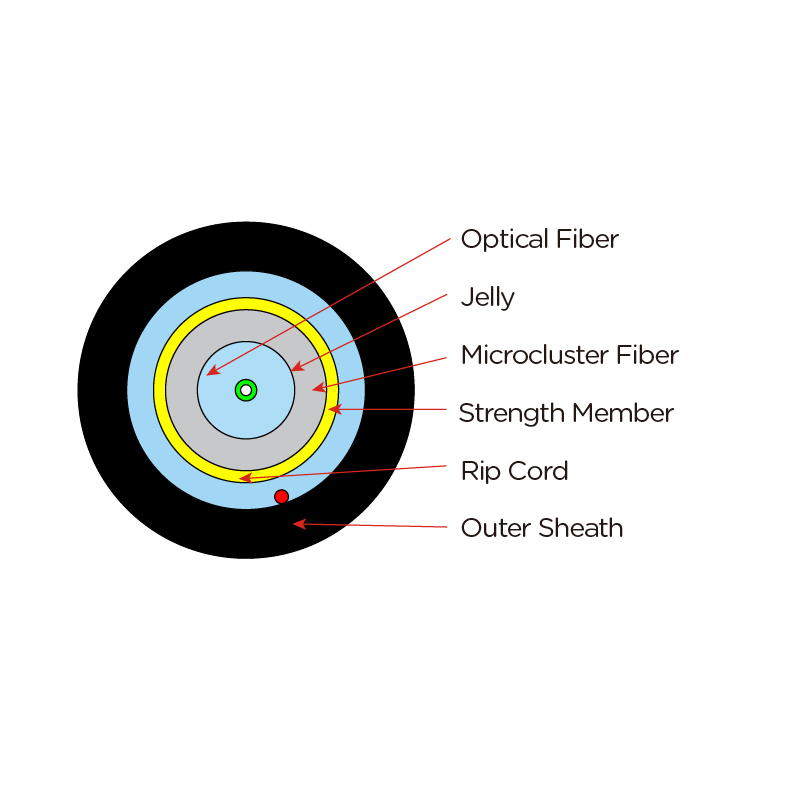

| Structure | Drop Cable - Double Sheath |
| Application | Vertical Cabling / FTTH Access |
| Jacket | Double LSZH / PE |
| Installation | Indoor / Outdoor / Vertical Riser |
| Operating Temperature | -40°C to +70°C |
FAQs
Why double sheath cable?
It provides extra mechanical protection for vertical and harsh installations.
Where is vertical cabling used?
It is used in building risers and high-rise fiber distribution systems.
Is it suitable for FTTH?
Yes, it is designed for FTTH last-mile and indoor-outdoor access networks.
